mitmproxy, but on Android

mitmproxy has always been extremely helpful when I needed an HTTPS proxy that would allow me to monitor network traffic with more freedom. Last week, while trying to monitor an application on Android, I discovered an interesting open-source tool that made the entire process possible directly on the device, with very little configuration: PCAPdroid. Monitoring and decrypting network traffic with just a few clicks was truly satisfying.

Installation #

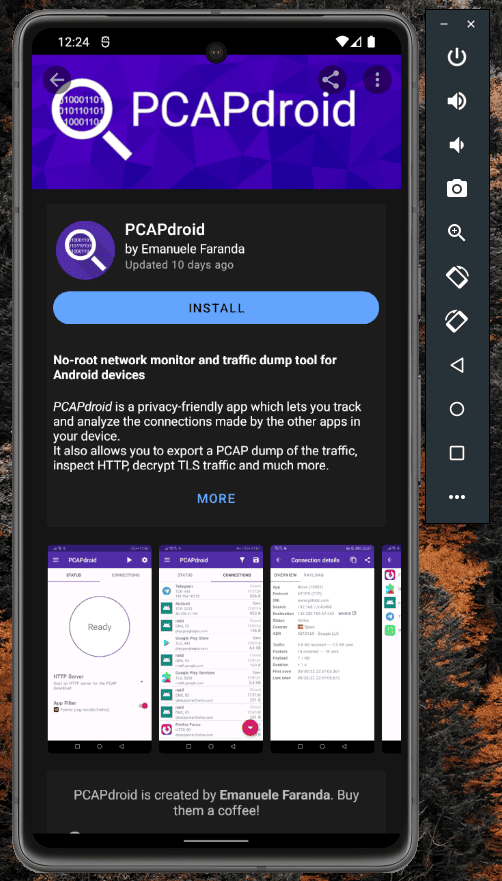

It can be easily installed through the Play Store, F-Droid, or the APK from its GitHub page. The choice is yours.

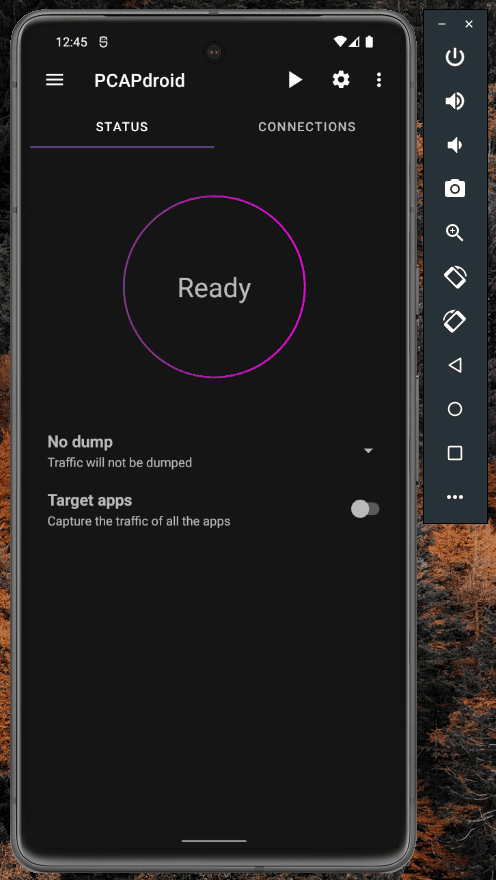

Main screen #

Here we can choose which apps will be monitored and decide if we want to dump the traffic to a specific location. By default, the app will create a VPN to establish the proxy connection, but it’s also possible to activate a transparent connection in the settings, which would require root access.


Activating mitmproxy #

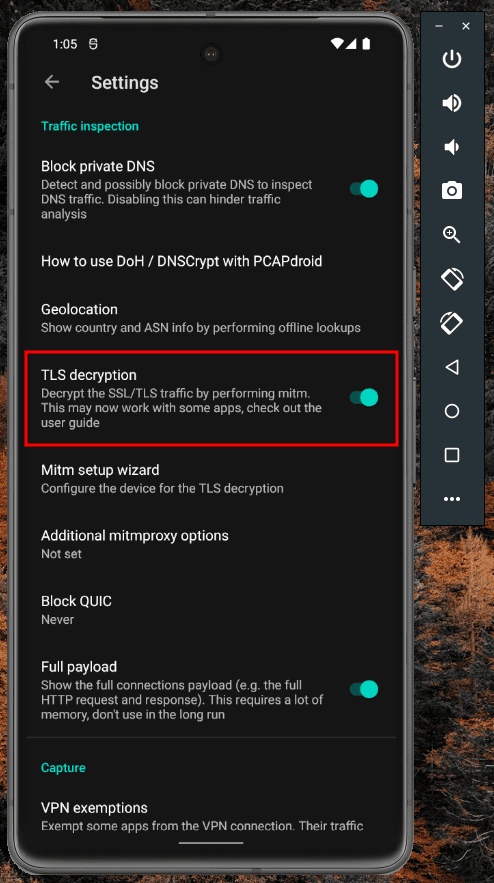

In the settings, you’ll find an option to enable TLS decryption. The app provides a very educational guide about what needs to be done. You’ll install an addon with mitmproxy and a CA certificate in the system.


Targeting specific apps #

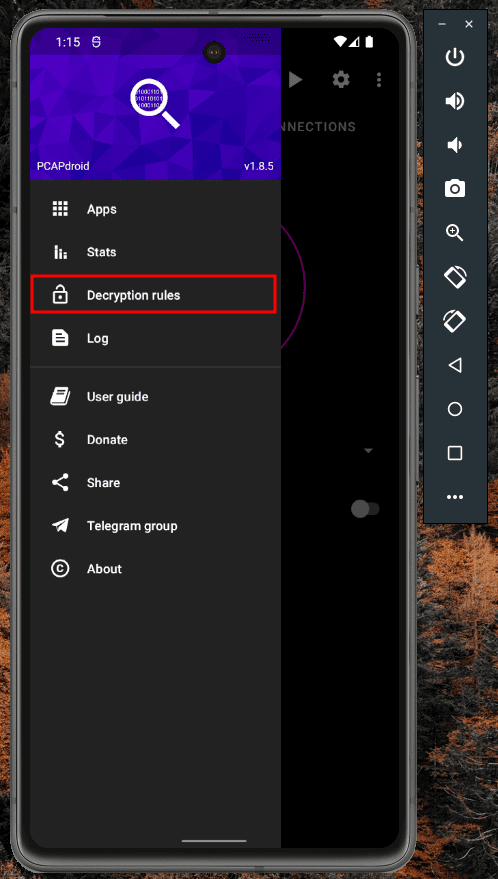

In the left menu, under “Decryption rules”, you can select which apps will have their traffic decrypted, as well as use other criteria such as a specific host, IP, or even a country.


Testing #

Just click “Ready” and all established connections will be properly listed in the “Connections” tab. Here I’m using F-Droid as an example.

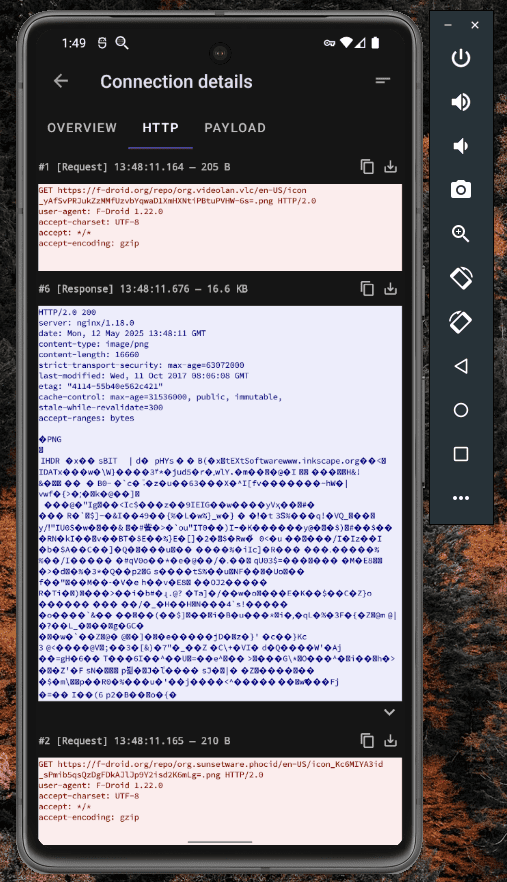

Those with a green open padlock mean they were successfully decrypted. When you click on one…


Voilà! The requests are right in the palm of your hand.

Final considerations #

Despite having installed the certificate on Android, unfortunately not all applications will allow you to use it with mitmproxy due to SSL pinning. Fortunately, there’s a tool called apk-mitm that attempts to fix these blocks directly in the APK files. It’s not 100% guaranteed to work, but in my tests, it has performed well. After installing the tool, the process is as simple as:

$ apk-mitm file.apk

Well, it’s worth a try. Here’s a tip.
